51.2V 314Ah 16KWh Wall Mounted Battery Pack LiFePO4 Smart BMS | Maxtour
| Model | BR-OW-LV 16KWH |
|---|---|
| Total Energy | 16.07KWh |
| Voltage | 51.2V |
| Capacity | 314Ah |
| Operate Voltage Range | 43.2-57.6 |
| MAX.Charge & Discharge Current | 200A |
| Product Size | 475*255*770mm |
| Weight | 112KG |
Share:
The 51.2V 314Ah 16KWh models with 5A active balancer
Whole-home backup & solar storage without compromises:
🔁 10,000-cycle LFP for lower lifetime cost
⚡ 200A headroom for HVAC/heat pumps/tools

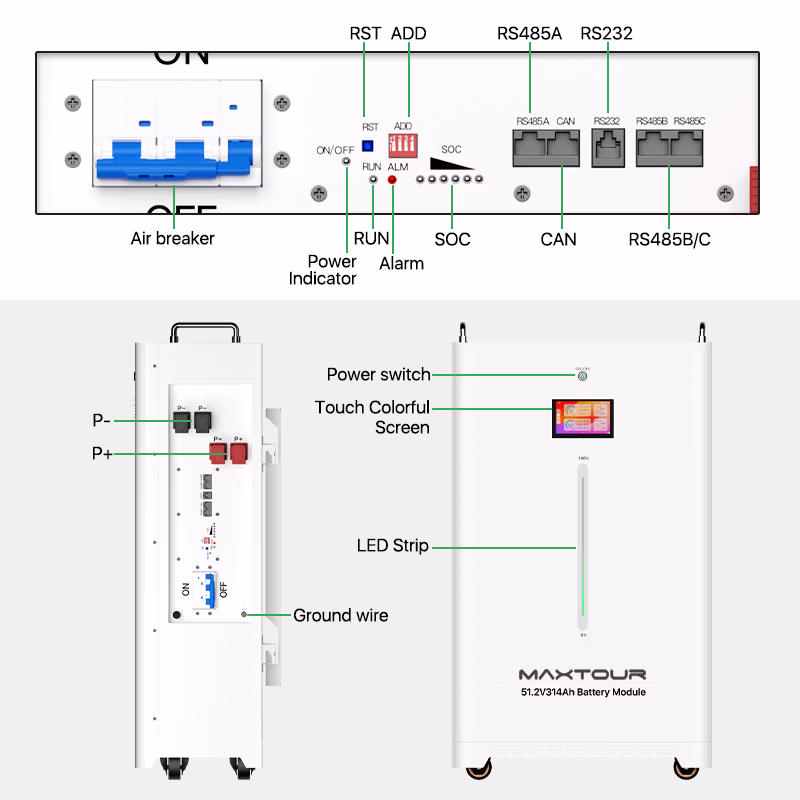

🔌 RS485/CAN/RS232 · DEYE/Victron/Growatt etc.
📱 App + touch · multi-language · SOC light bar
🛡️ 5A active balancer · built-in breaker · IP55
🛞 Wheels + handles · parallel up to 16
Why Homeowners Choose This 16KWh Battery?
🔌 High-power readiness: 200A bidirectional current handles surge-prone loads (HVAC, heat pumps, power tools) with less voltage sag.

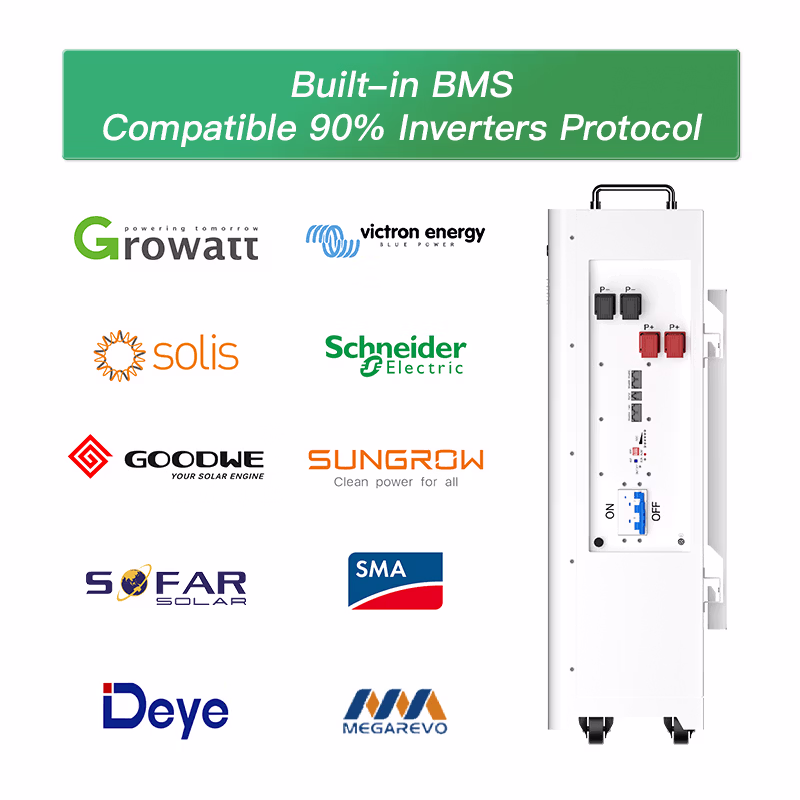

🧩 Broad inverter ecosystem: communicates via RS485/CAN/RS232 with DEYE, Victron, Growatt, Solis, Sofar, GoodWe and more.
🏠 Flexible installation: wall or floor mount; wheels and fixing handles for easy placement and service access.

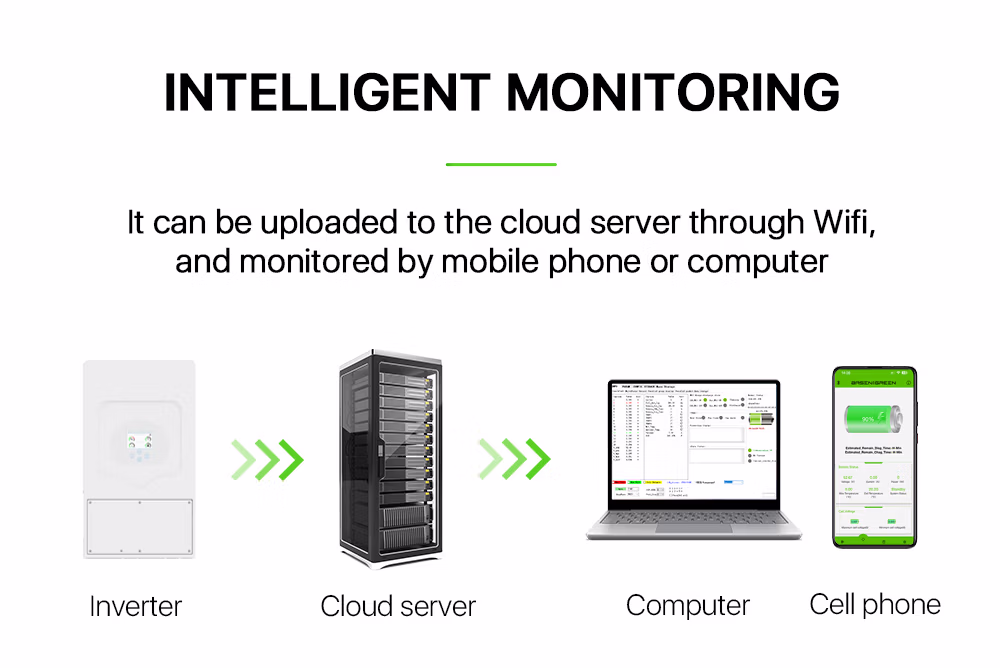

📱 App + Touch UI: optional touch screen, Bluetooth/Wi-Fi app, multi-language interface, and SOC light bar for at-a-glance status.
📈 Long service life: up to 10,000 cycles helps reduce long-term replacement cost and LCOE.
Best-Fit Scenarios
🏠 Whole-home backup with surge-prone loads (HVAC, heat pumps, well pumps, power tools)

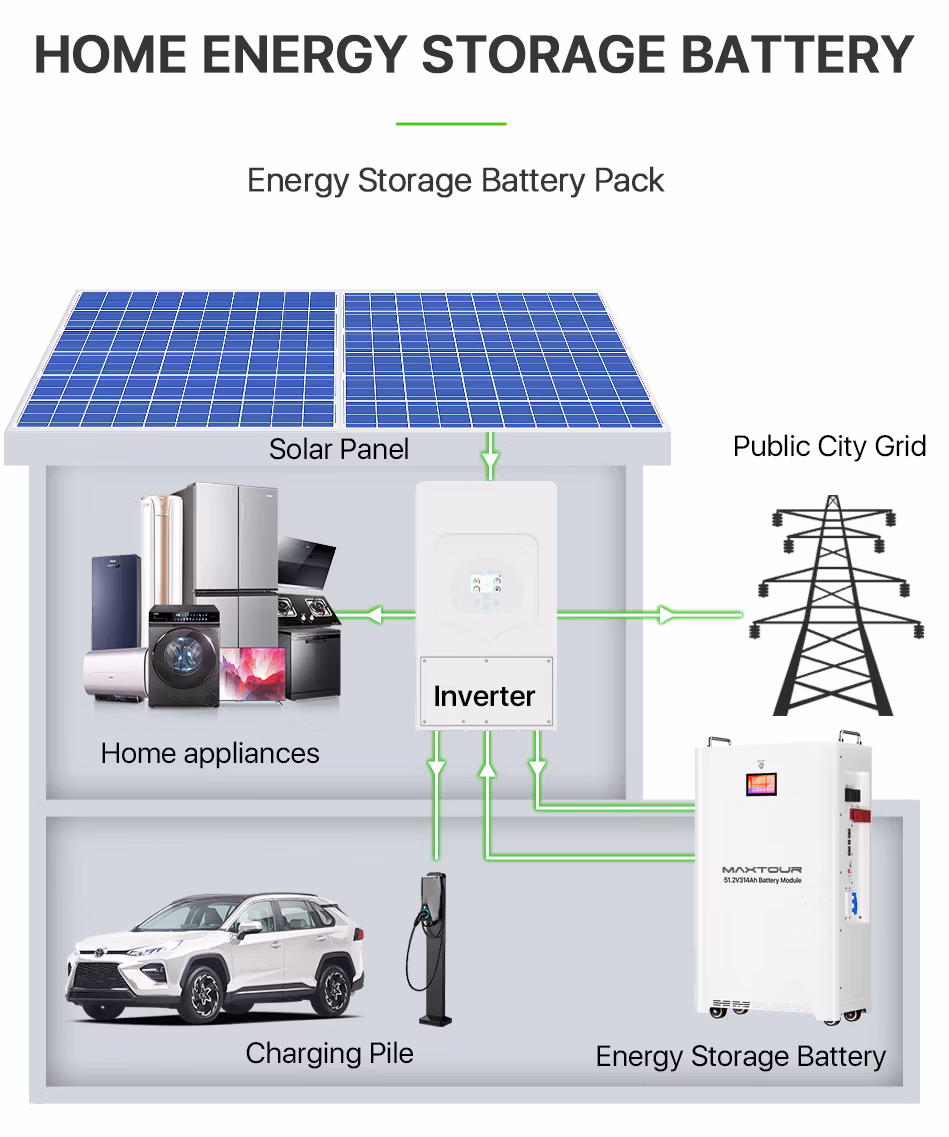

☀️ Solar self-consumption, TOU peak-shaving, off-grid/hybrid systems
🏭 Small commercial backup where floor space is limited (wall/floor-mount flexibility)
